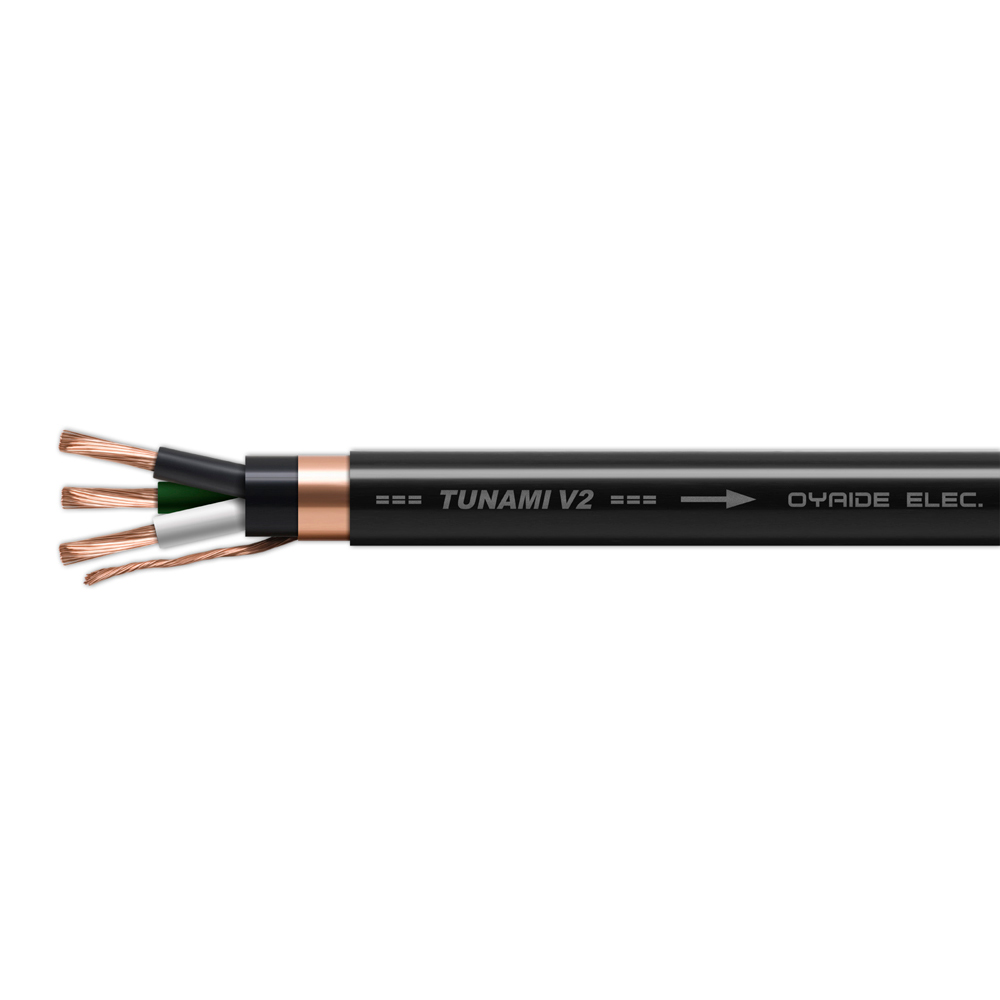

OYAIDE TUNAMI V2 MAINS POWER CABLE
- SOLD PER METRE FOR DIY
- UP-OCC CABLE
- 5.5MM SQ CONDUCTORS
The “TUNAMI” is a powerful, high-speed and dynamic cable of a new generation. The short-pitch stranded PCOCC-A wire which has 5.5sq cross-section area actualizes high-power signal transmission. Its voltage endurance is 600V and maximum amperage is 30A. For noise protection, we specially developed the triple-layered shielding structure. It not only rejects internal and external noise, but also instantaneous spark noise due to vibration.
From the deep stillness of TUNAMI, you can even sense the atmosphere of pre-performance of sound source. Since the day of our establishment in 1952, we at Oyaide Electric had opportunities to apply a number of State-of-ART technologies specific to our specialized cable store. Our products reflecting such advantages offer unmatched performance. Moreover, TUNAMI achieved to increase security proved by clearing <PS>E.
TUNAMI GPX embodies an ideal fusion of State-of-Art technology and craftsmanship. It equipped with P/C-046 special edition plug and connectors which was highly-regarded in the US and Japanese market.
PCOCC copper is a material that includes very few impurities and insures very low levels of signal disturbance. Because of its low incidence of grain boundaries, the signal passes without impediment or distortion. Heating and cooling the PCOCC wire under controlled circumstances yields a densely re-crystallized, highly pure structure called a μ conductor. The resulting product with a mirror finish applied is called PCOCC-A copper. This highly advanced product is made possible by the combined application of high technology and traditional Japanese craftsmanship.
We have advocated the importance of noise protection which becomes a defining feature of power cable. Although we accomplished certain results by applying star-quad shielding structure to L/i 50 series, considering customer demands and trends, we pursued producing updated product with a state-of-art technology. For TUNAMI, we developed triple-layered shielding structure.
The first layer of this structure converts electromagnetic wave into thermal energy by interfusing electromagnetic insulator. As the second layer, semiconductor layer (carbon) is employed for its characteristic that discharges static electricity without affecting its conductor. A copper foil shielding is set as the third layer to protect the conductor from external noise. Furthermore, drain wires, closely-situated to copper foil shield, make S/N ratio higher by connecting to earth ground.
After the deep analysis for insulator, we selected polymer polyolefin that has different degree of hardness at interior and exterior to prevent negative effect by sympathetic vibration. Moreover, this material has a quarter of permittivity compared to common PVC and we paid careful attention to strengthen the cohesiveness of its insulator and conductor in order to infill random space and maintain a high-quality signal transmission.
