LAB12 INTERGRE4 AMPLIFIER

£3,000.00

• EL34, 6550, KT88, 6550, KT120 compatible
(KT150 from factory)
• Remote Control
• Large OLED display
• Blue Velvet ALPS motorized potentiometer
• Connectivity and extendibility through I/O Upgrade Modules
• Sophisticated protection and bias monitoring system
• No feedback design
• SRSG® implementation
• Gold plated Teflon RCA connectors
• Gold plated tube sockets
• 5mm aluminum face panel with luxury painting
• Five years guarantee

Product price
Additional options total:
Order total:

Description

Description

Integrated amplifiers are returning in a big way. More and more people simply want to enjoy music without any cable cluttering and dealing with the multiple devices.
Integre4 was designed from the ground up as an epicenter of the contemporary high-end audio system, with the ability to drive any pair of loudspeakers with gestalt and highest involving
factor.

Integre4 produces 2 x 60 Watts with two KT-150 tubes per channel. Regulated high voltage power supply guarantees an absolutely noise free signal, eleven low ESR and high
capacity capacitors provide instant power on demand and ultra linear output transformers ensure the utmost dynamic, open and natural sound, that extends across
complete frequency range. Integre4 with stock K-150 tubes brings enormous and control power out of the box.

Lab12 team provided everything needed for an instant emotional engagement with the music. High quality OLED display offers multiple adjustments and state of the art monitoring system acts as central digital processor and protection system by providing soft start for the output tubes (extended longevity), by showing the tube usage hours etc. Beneath the chassis Integre4 hides a complex and sophisticated 21st century operating system, that provide constant monitoring of all tubes and high power electronic parts, that protects them from any kind of harmful damage. Bias can be adjusted manually via built in high quality metering system and instant adjustable anode current allows the use of any octal type tube. But the feature set doesn’t end here. Lab12 Integre4’s
dedicated headphone circuit fully exploits the amplifier power stage in absence of any OPamps. Yes, Integre4 can act as a true Lab12 high-performance, high-end headphone
amplifier.

Specifications:

• Power: 210 – 240VAC 50Hz (110 – 120VAC 60Hz)
• Power consumption: 350 VA max
• Output power: 60 watt per channel (KT150)
• Frequency response: 15 Hz – 60 KHz (-1dB)
• Input impedance: 50K ohms
• Recommended speakers: 4-8 ohm
• Tubes complement: 4x 6n1p dual triodes, 4x KT150 power pentodes (EL34, KT88, 6550, KT120 compatible)

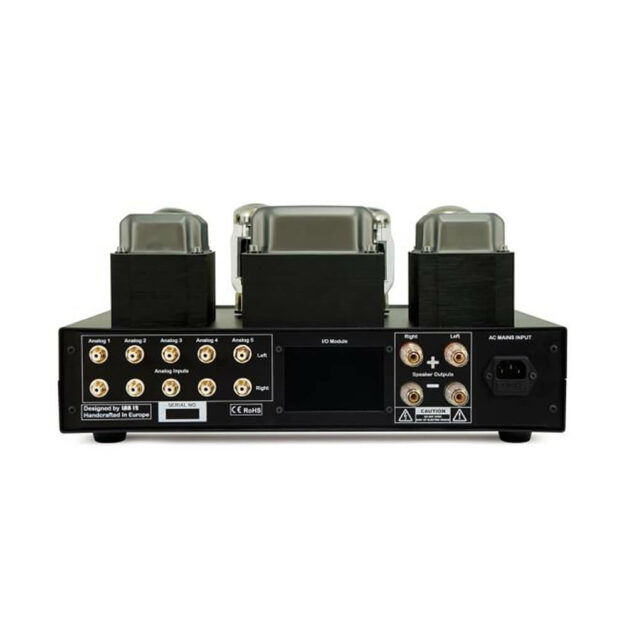

• Inputs: 5x line stereo RCA connectors
• Available Colours: Matt Grey, Matt Black
• Dimensions (WxHxD): 43x19x29 cm
• Weight: 19Kg

Additional Info

Additional information

Weight 10 kg
